CPU stands for Central Processing Unit.
You can think of it as an arithmetic unit.
It performs the task of reading and executing the code we've designed.
But how many CPUs are in the TC275 that we are currently purchasing and operating?

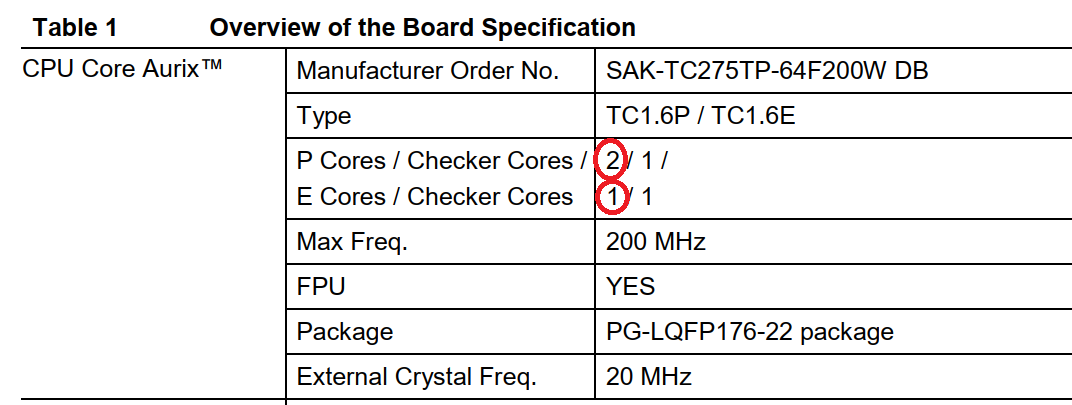

It has 3 cores.
You can think of it as having 3 CPUs.
The MCU we purchased has an excellent spec, boasting as many as 3 cores.
Therefore, we can create something really cool later using these 3 cores.
You can study concepts like Mutex, Semaphore, and shared resources.
Price competitiveness is really important in the company.
By using not two MCUs but one MCU with two cores in the design, you can gain advantages in execution time, and above all, save money.
However, a lot of study is needed to design using two cores.
You also need to be proficient in handling Linker Script.
You should also be good at handling #pragma. Hahaha.
The reason embedded systems are so attractive is that you can design everything from top to bottom yourself.
So let's try using only 2 of the 3 cores using ILLD.
If you look at the IfxCpu_CStart0.c file in ILLD, you will see a section that determines the use of Tricore.
#ifndef IFX_CFG_CPU_CSTART_ENABLE_TRICORE0
# define IFX_CFG_CPU_CSTART_ENABLE_TRICORE0 (1) /**< Cpu0 enabled by default*/
#endif
#ifndef IFX_CFG_CPU_CSTART_ENABLE_TRICORE1
# define IFX_CFG_CPU_CSTART_ENABLE_TRICORE1 (1) /**< Cpu1 enabled by default*/
#endif
#ifndef IFX_CFG_CPU_CSTART_ENABLE_TRICORE2
# define IFX_CFG_CPU_CSTART_ENABLE_TRICORE2 (0) /**< Cpu2 enabled by default*/
#endif
Originally, all are set to 1, but let's try changing Tricore2 to 0.
Then, the operation of Core2 will stop, and we will only be using Core0 and Core1.
Now let's try building it once.
An error occurs.
A linker error has occurred.

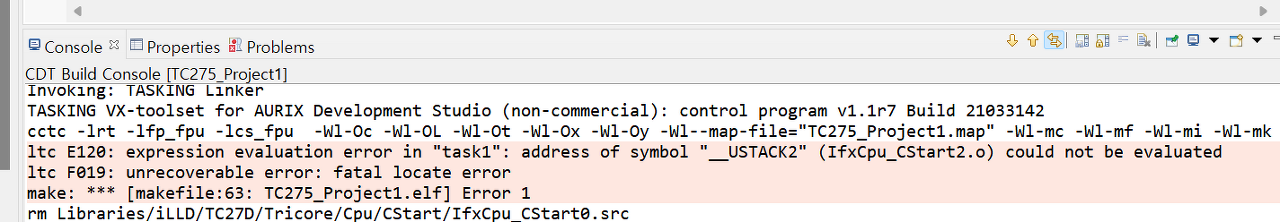

IfxCpu_CStart2.o has been created, but it says it can't find the Symbol called __USTACK2.
/* Load user stack pointer */
__setareg(sp, __USTACK(2));
Since we're not going to use Core2 now, let's remove the IfxCpu_CStart2.c file.
Then there should be no problem during linking!

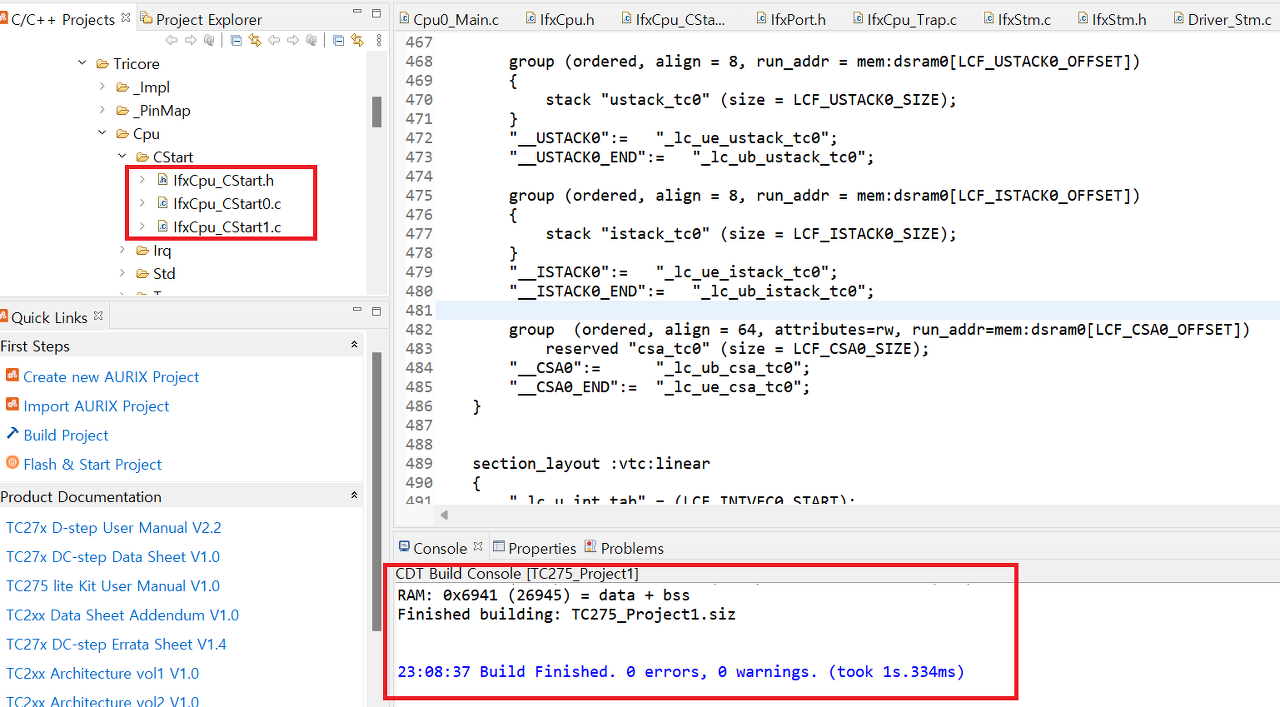

First, we can confirm that the compilation has been done correctly.

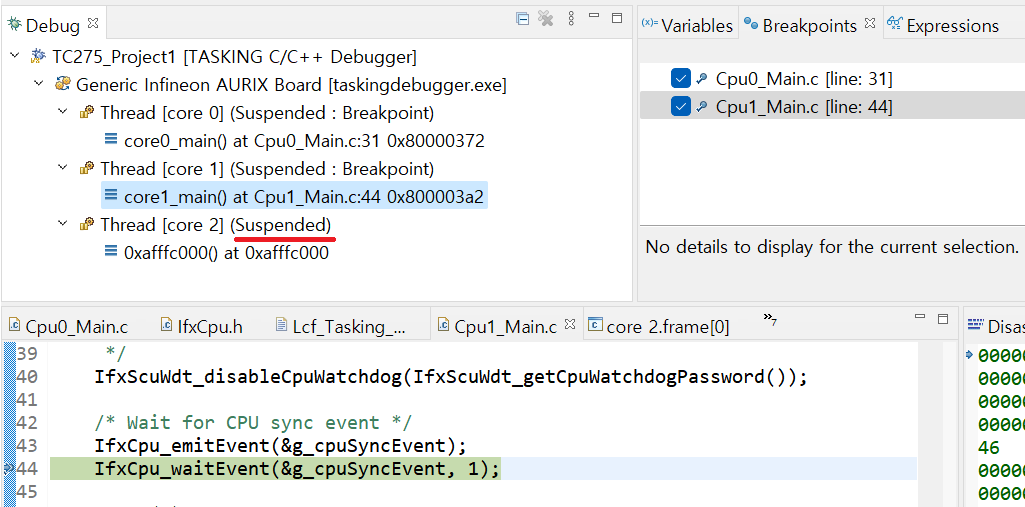

And if you run the board below, you can see that the Core2 part is suspended and not operating.
Only Core0 and Core1 are running.
Now it would be good to think about the Start Code and Linker Script files.
But what does Start Code mean?
